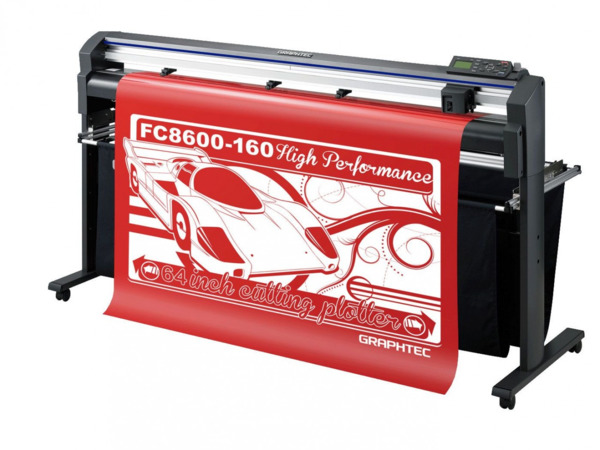

Renting Global: Graphtec FC8600-160 Vinyl Cutter with Stand

Specifications: Configuration: Digital Servo drive, friction feed with grit roller Maximum cutting area: 64" x 164 ft. Cutting area of guaranteed accuracy: 64" x 49.2 ft. Mountable media: Min - 2"; Max - 72.8" Maximum cross cut area: 68.8" Number of push rollers: 4 Maximum Cutting speed: 58.4"/second Axial acceleration: 4G in 8 steps Cutting force: 600gf in 48 steps Mechanical resolution: .0055mm Programmable resolution: GP-GL 0.1/0.05/0.025/0.01, HP-GL 0.025 Distance accuracy: Maximum 0.004" or 0.1% of plotted length Repeatability: Maximum 0.004" in plot up to 78.7" Minimum character size: approximately 0.12" Blade type: Supersteel (0.99mm or 1.5mm diameter) Pen type: water-based fiber-tip and oil-based ballpoint pens Media type: self adhesive marking vinyl up to .25mm thick, polyester film up to .25mm thick, sandblast resist rubber up to 1mm thick, regular paper from .06mm to .13mm thick Light pointer: built into the tool carriage Cross cutter: built into the tool carriage Perforation cut: supported (performed by force control) Interface: USB 2.0 (full speed), RS-232C, Ethernet Buffer memory size: 2MB Registration mark sensing system: scans the mark by optical sensor (ARMS5.0), segment area and multiple marks compensation, 4-points axis alignment, auto mark detect
